Itasca County 31565

Itasca County 31565

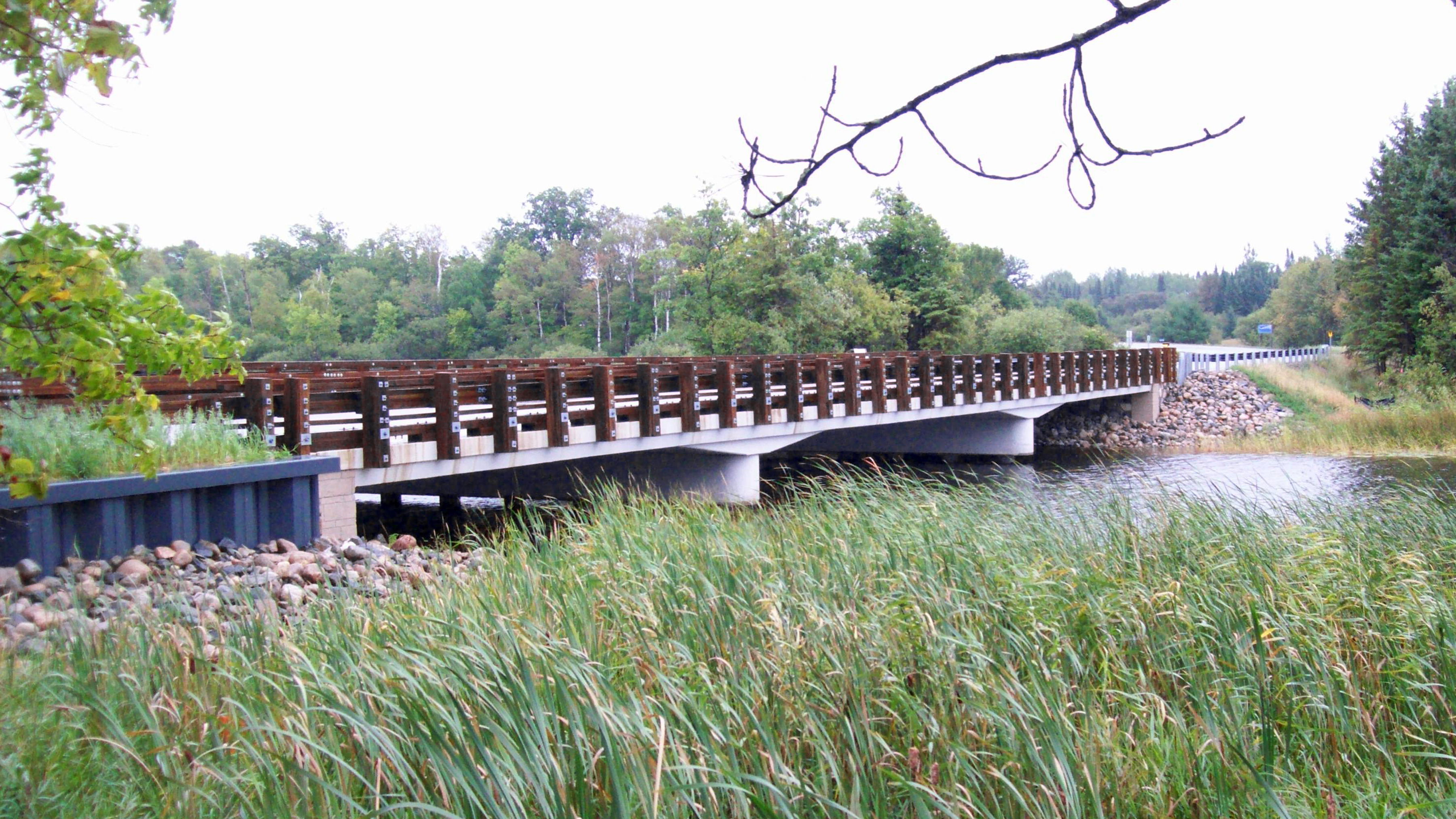

The new bridge crosses over the Bowstring River on CSAH 4, and consists of a 3-span continuous concrete slab structure with a total length of 152 ft. The bridge roadway width is 32 ft, and there is also an 8 ft wide sidewalk on one side. The bridge deck was designed with haunches at the piers to accommodate a longer center span. To satisfy a local resort owner, a treated timber railing system was installed on the bridge to improve aesthetics. The abutments / wingwalls were also faced with a stone pattern concrete formliner.
Service Performed: Field Survey, Hydraulics, Permit Applications, Geotechnical and Utility Coordination, Preliminary / Final Bridge Design, Specifications, Cost Estimate.
Construction Completion Date: 2013.
Construction Cost: $991,545.
