Wright County 86531

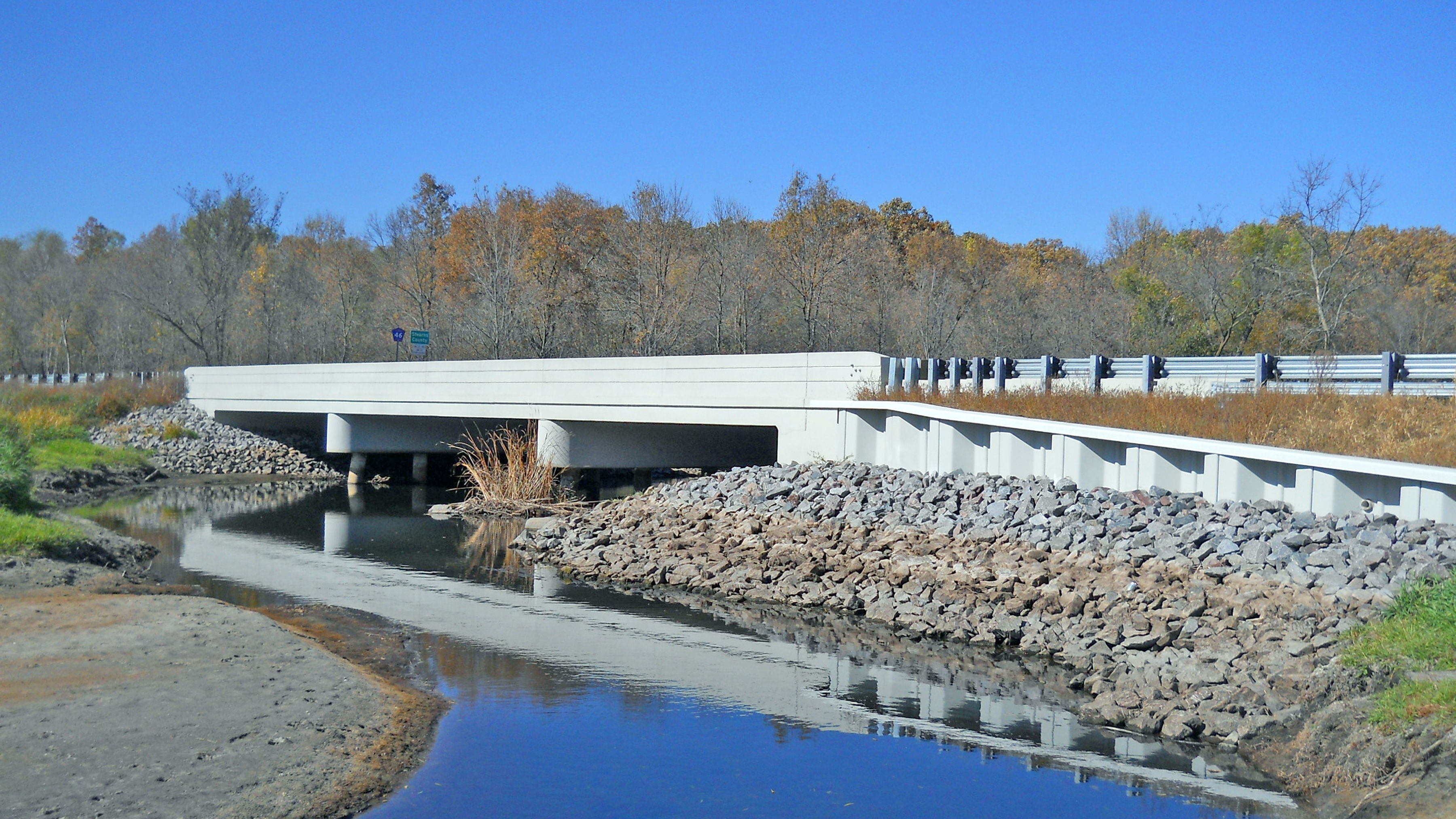

This new bridge on CSAH 40 crosses over the Clearwater River and is a 3-span continuous concrete slab structure with a total length of 90 ft. The roadway width is 36 ft. The design included concrete approach panels and approach guard rail at each end of the bridge. A steel sheet pile retaining wall extending from the southeast wingwall was also included in the design.
Services Performed: Field Survey, Hydraulics, Permit Applications, Geotechnical and Utility Coordination, Project Memorandum, Preliminary/Final Bridge Design, Specifications, Cost Estimate.
Construction Completion Date: 2011.
Construction Cost: $434,882.
